Merger
Introducing the Martin 2430 Merger, a premium hay merger with six crop-delivery options. Purposefully designed with the crop producer in mind, this machine will boost your productivity by creating high quality windrows.

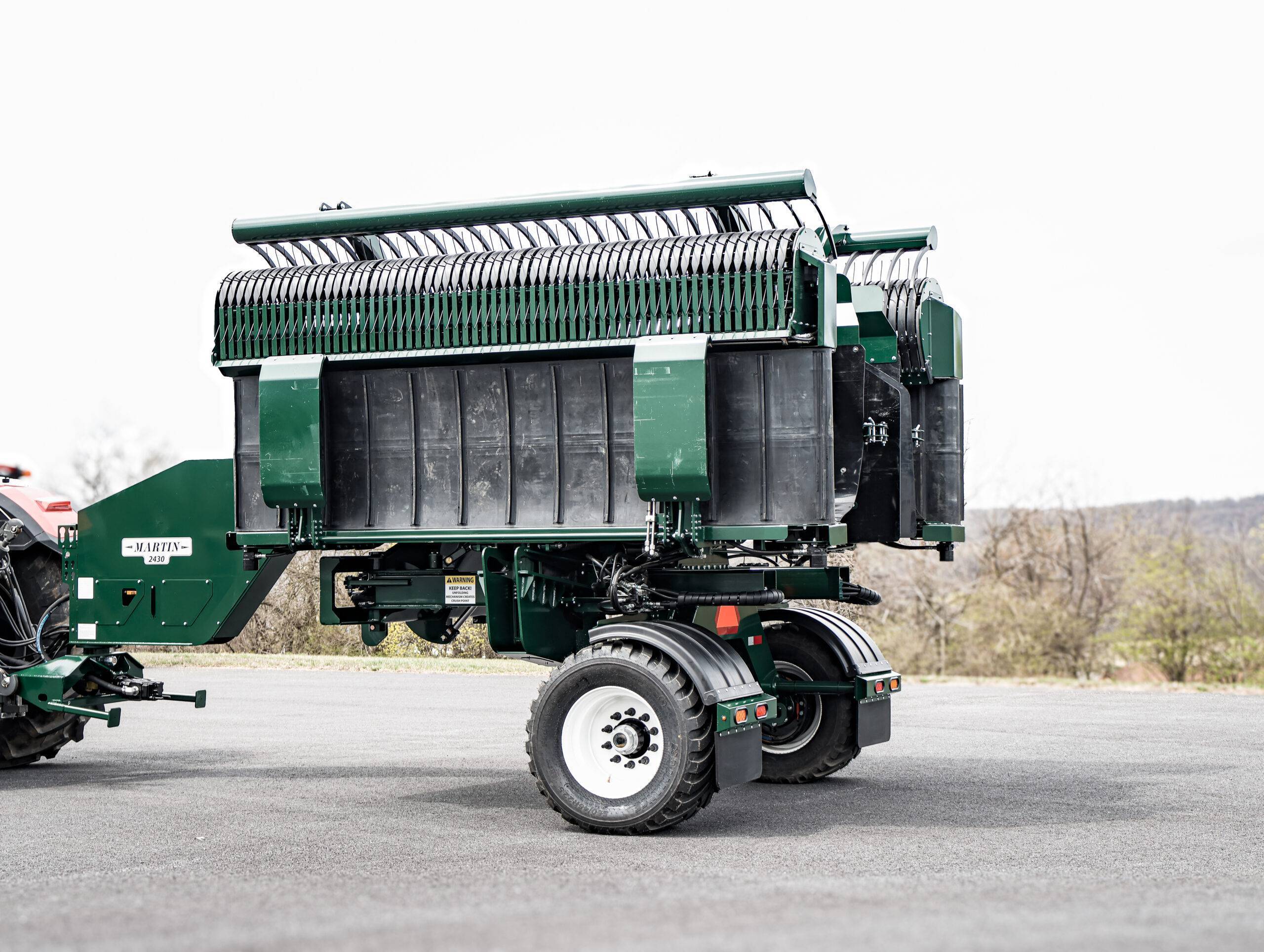

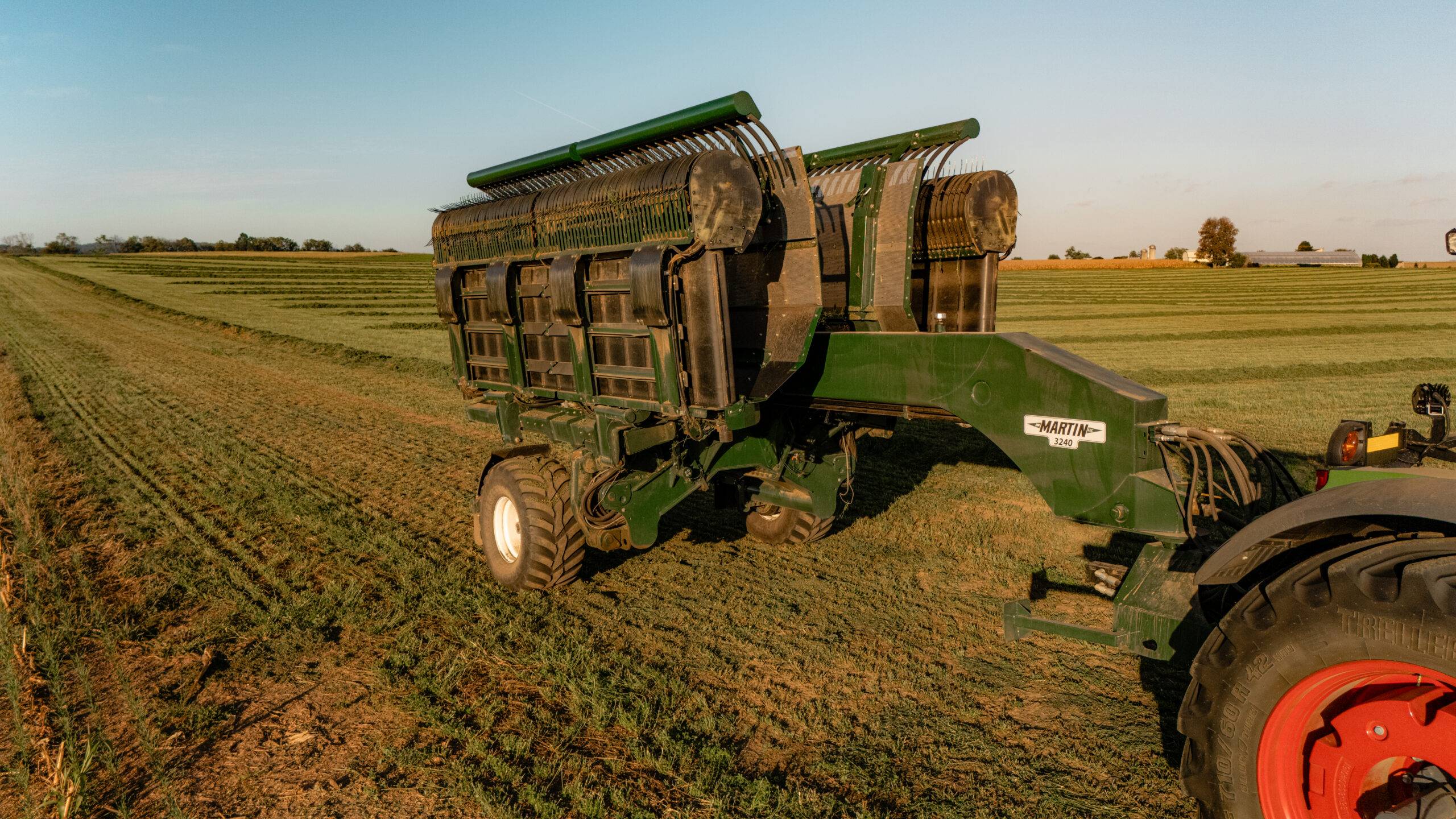

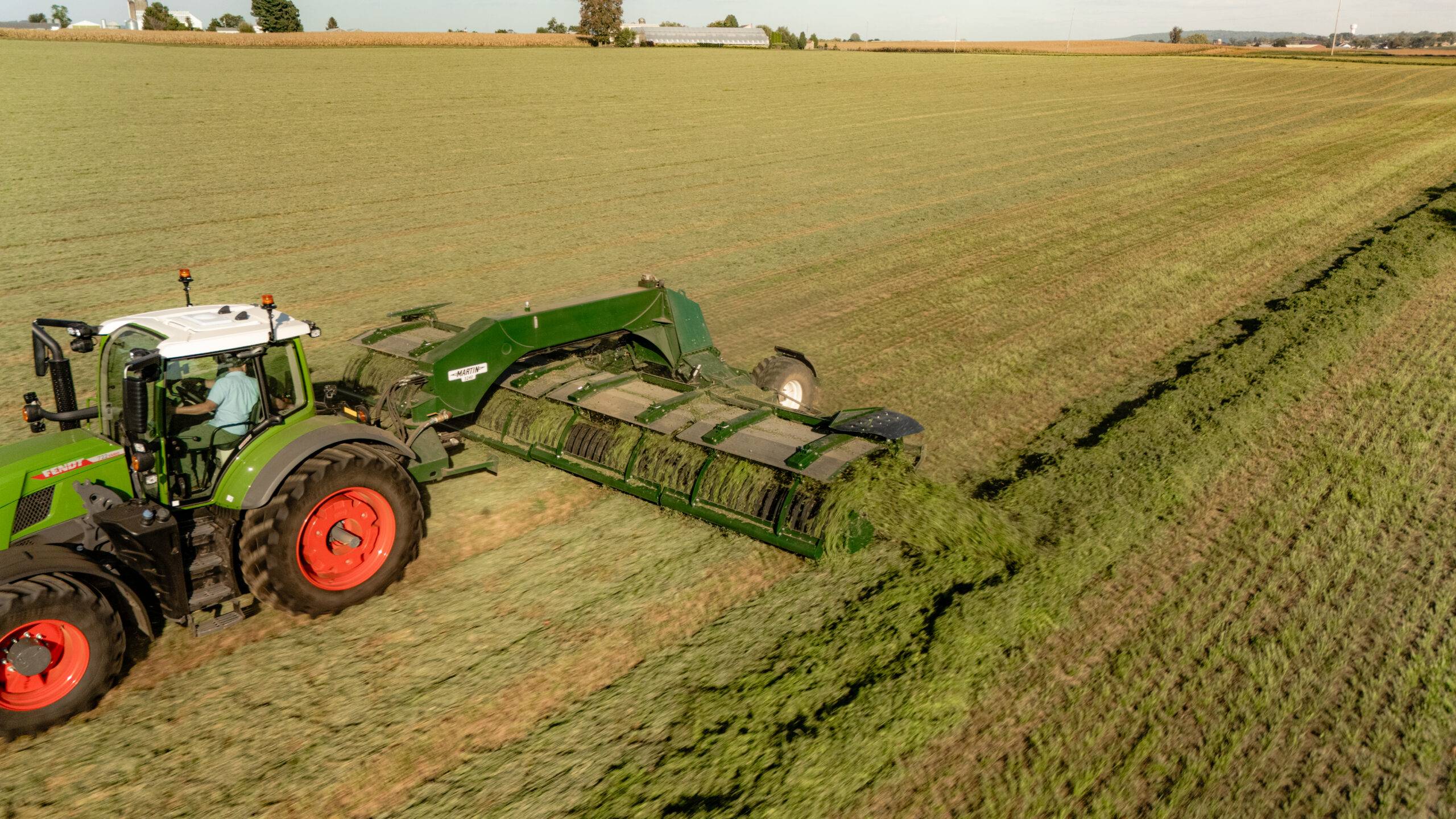

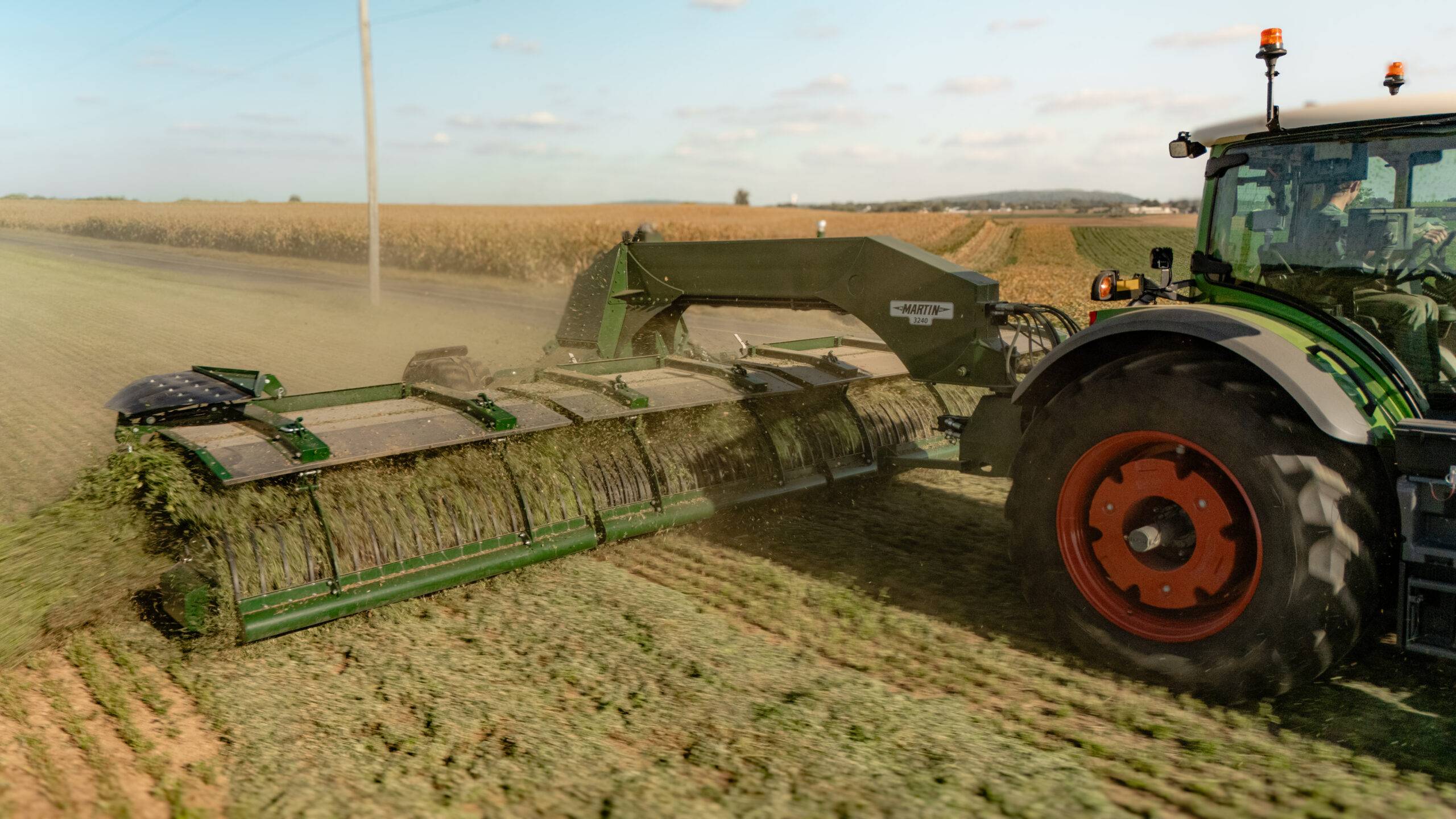

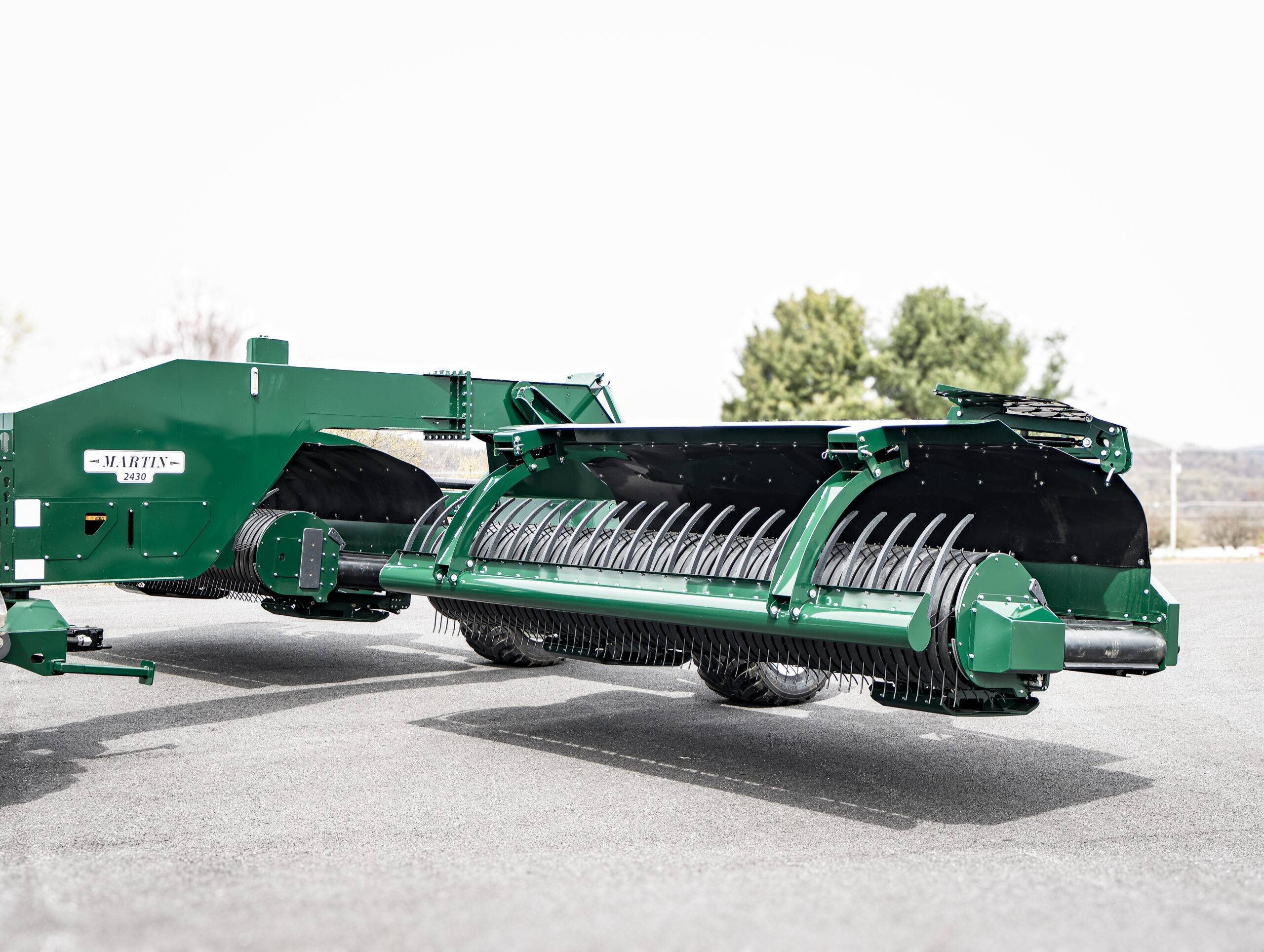

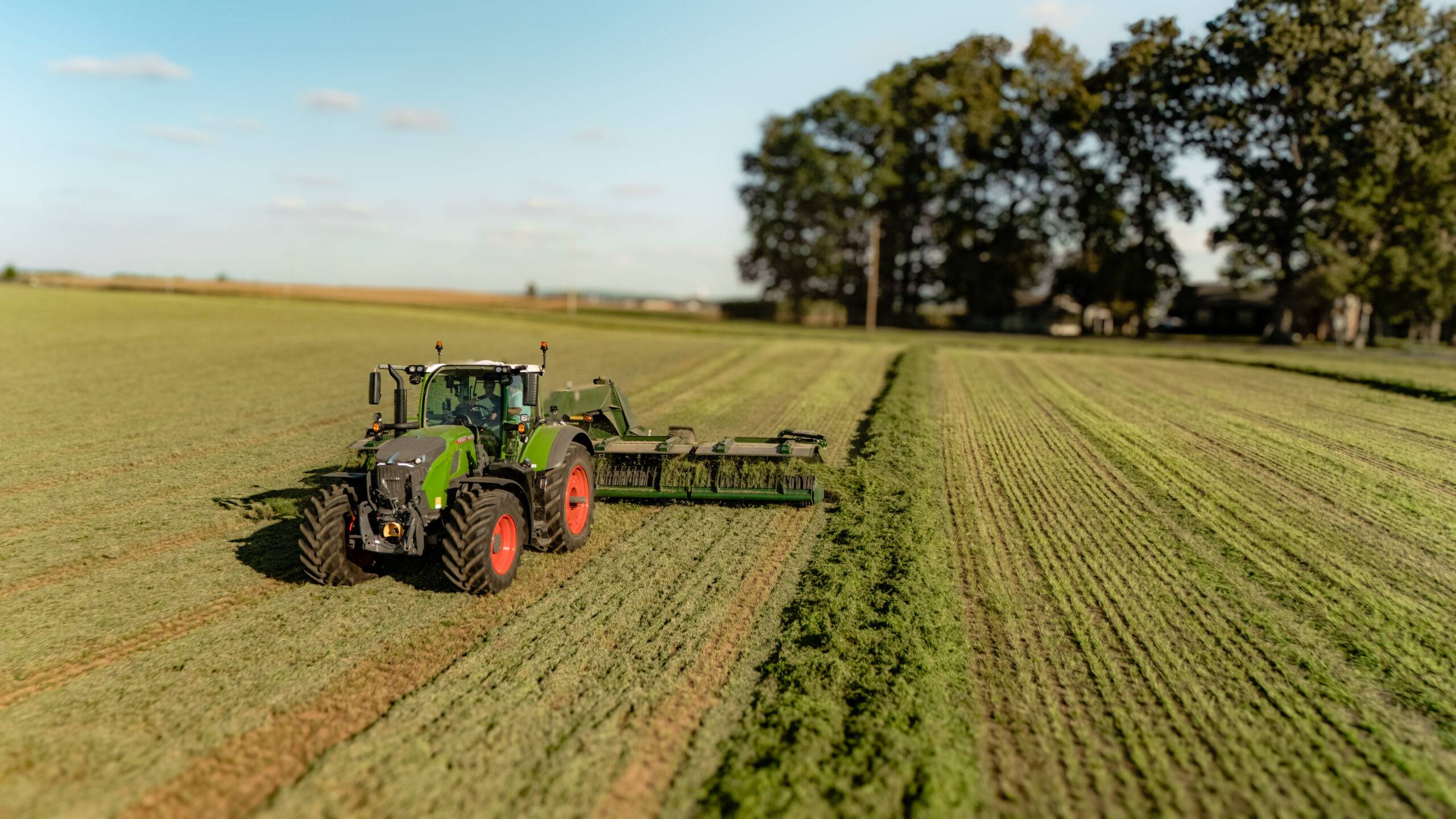

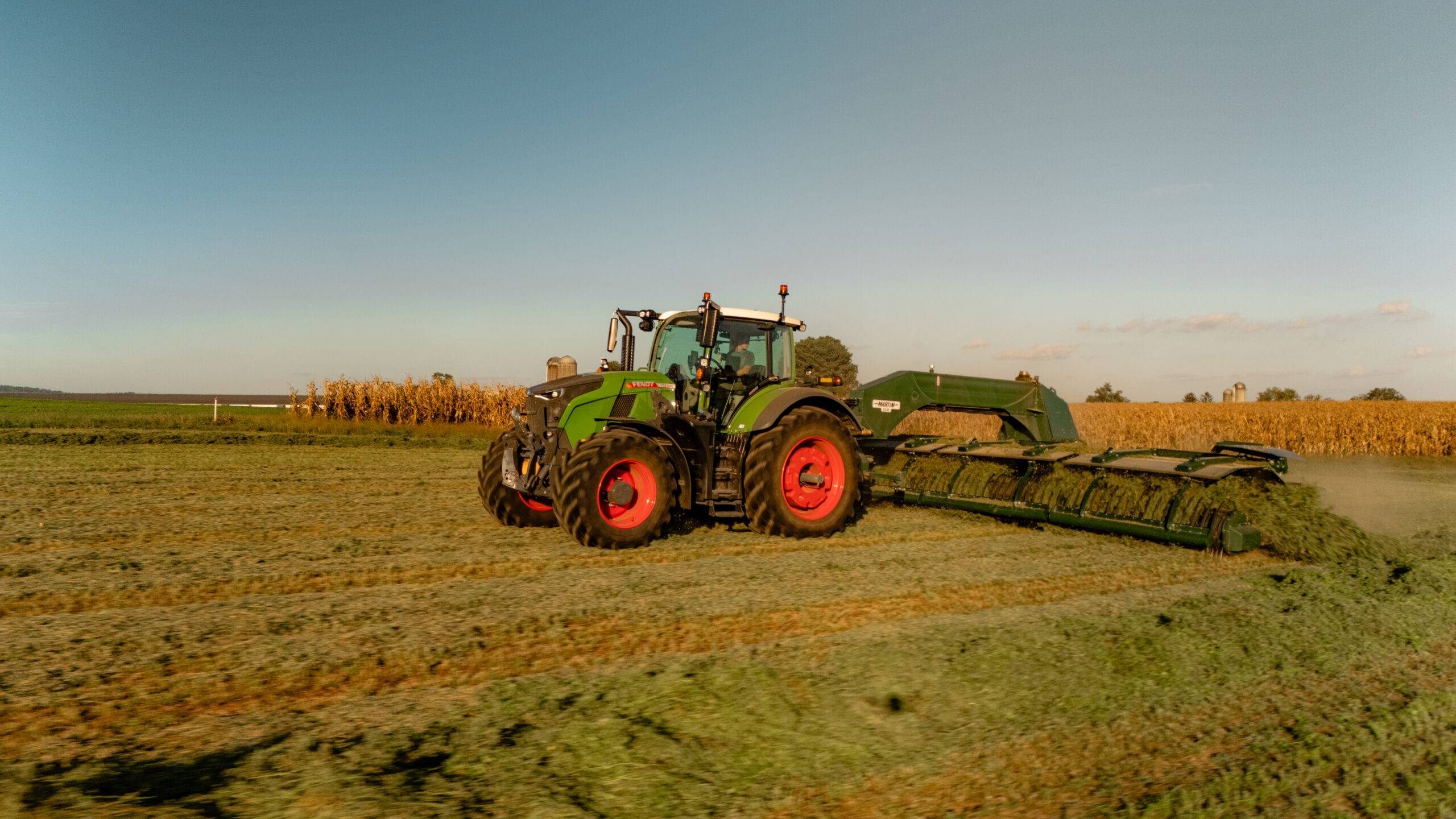

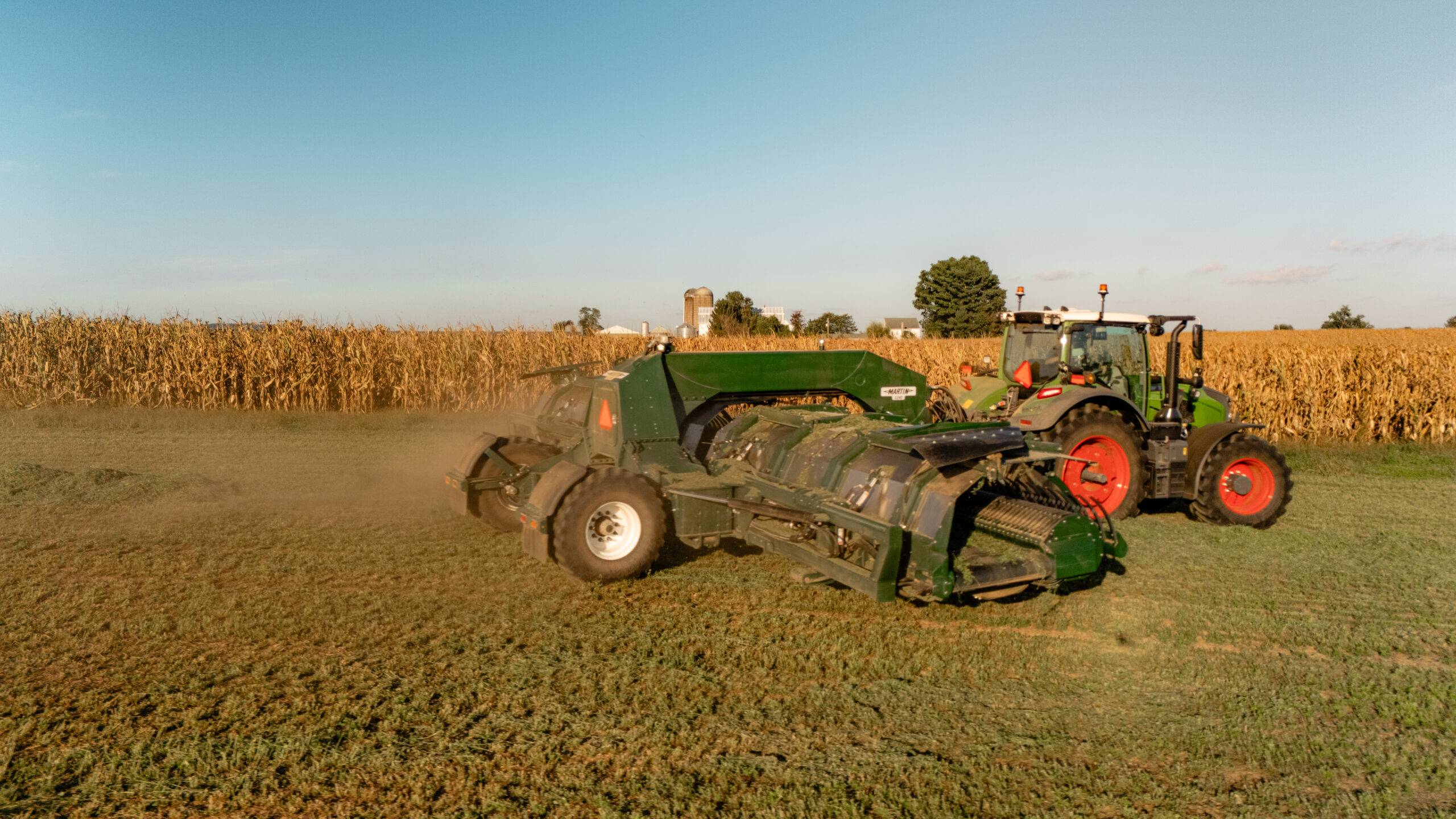

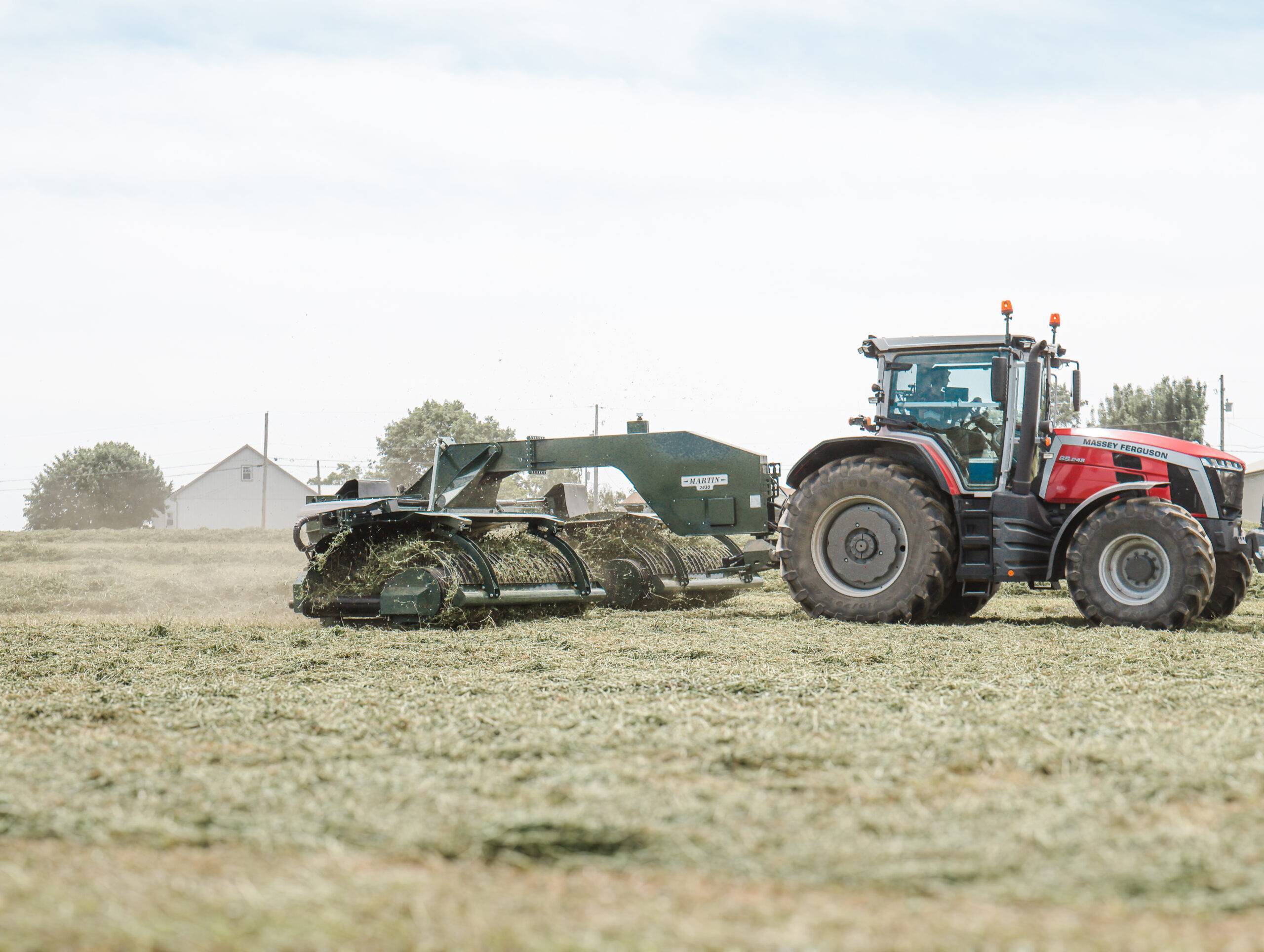

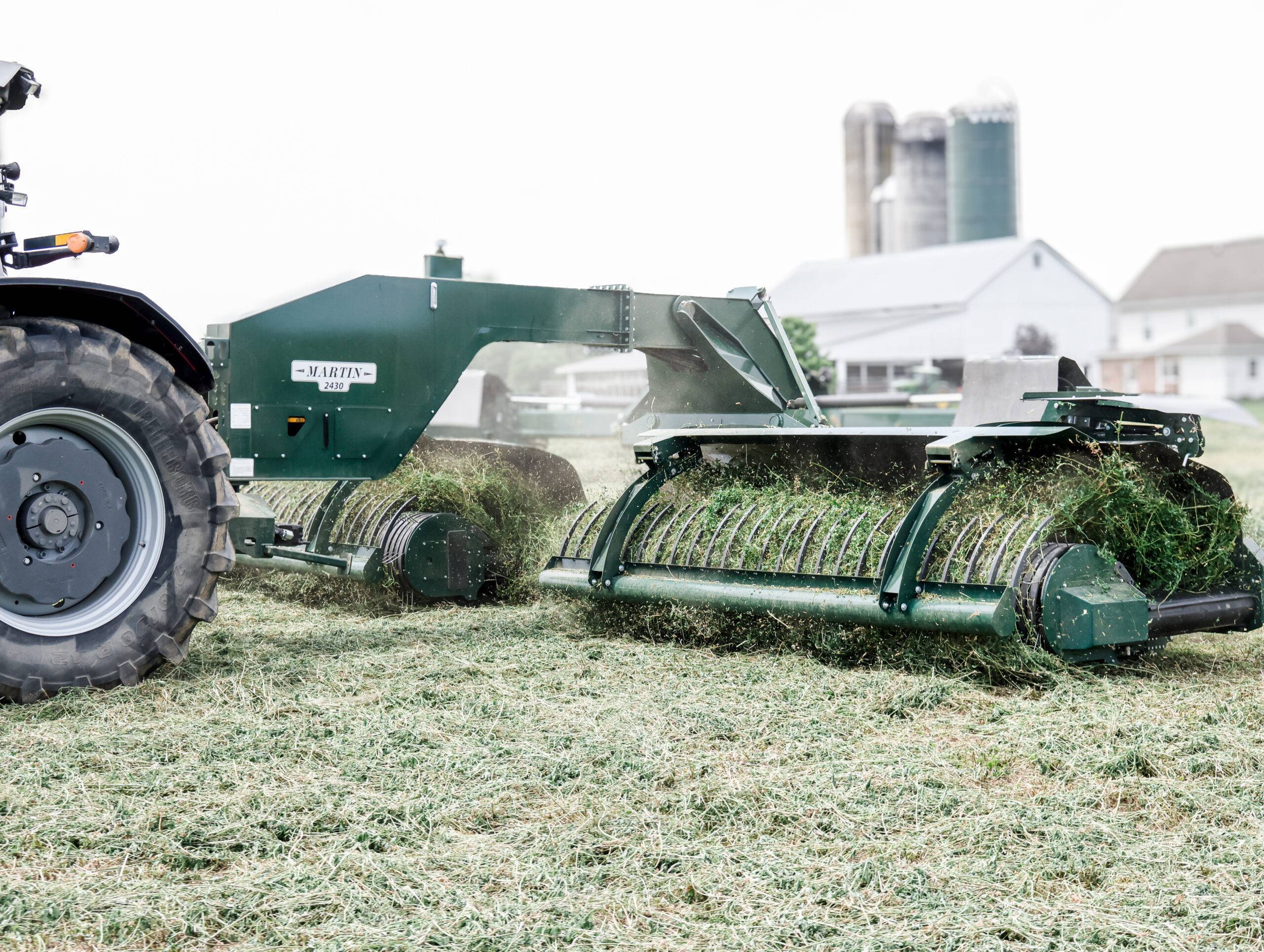

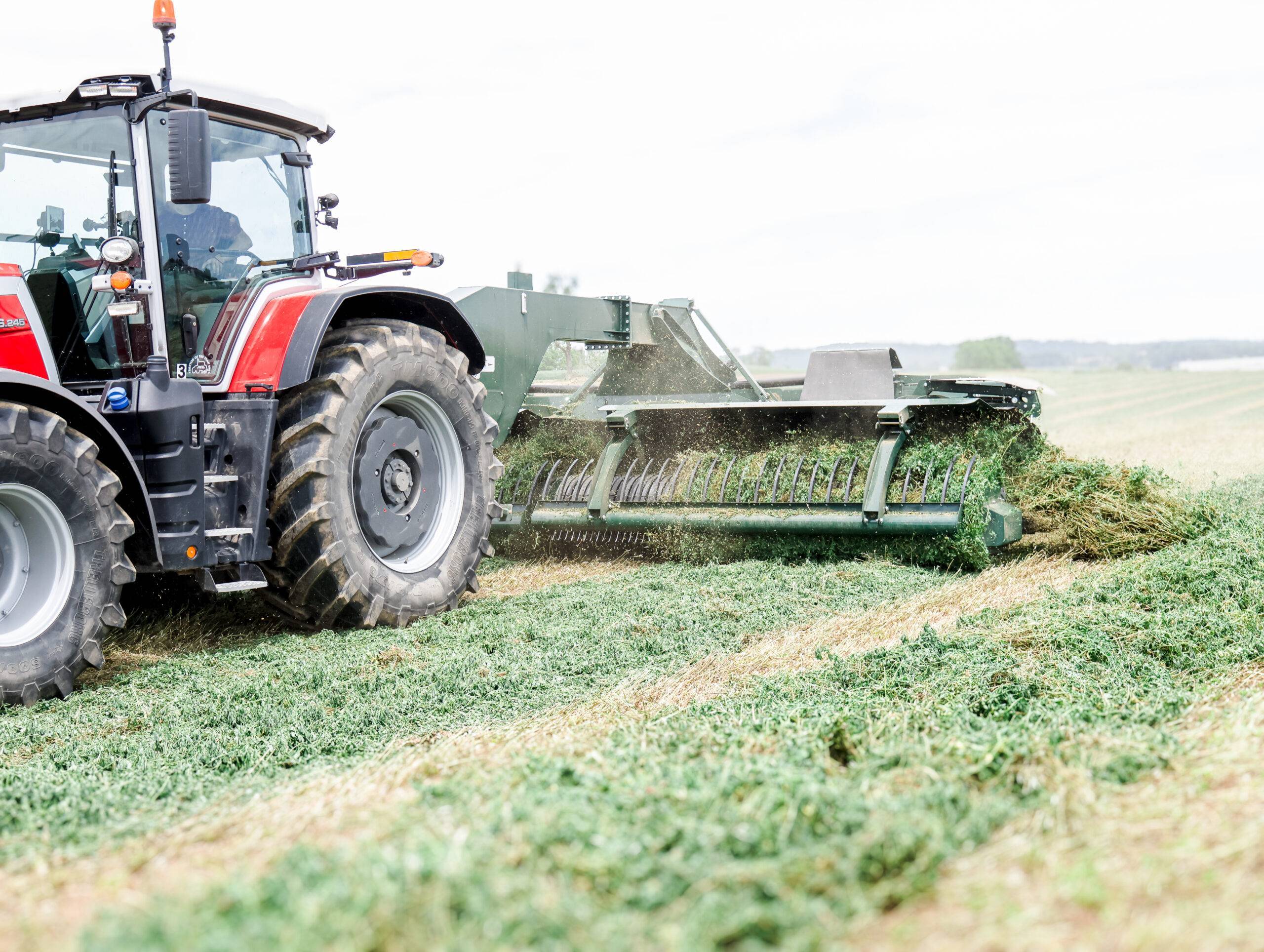

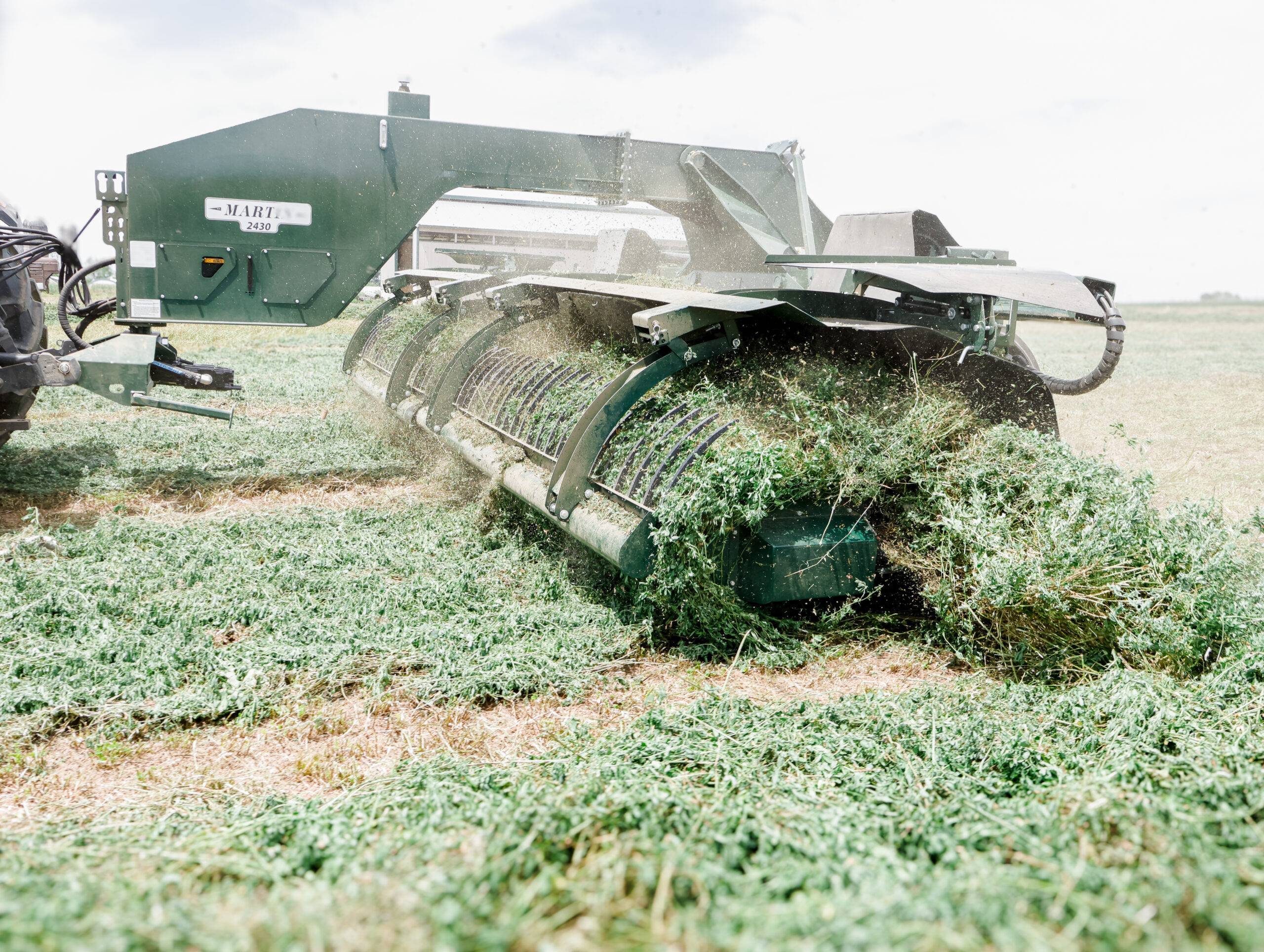

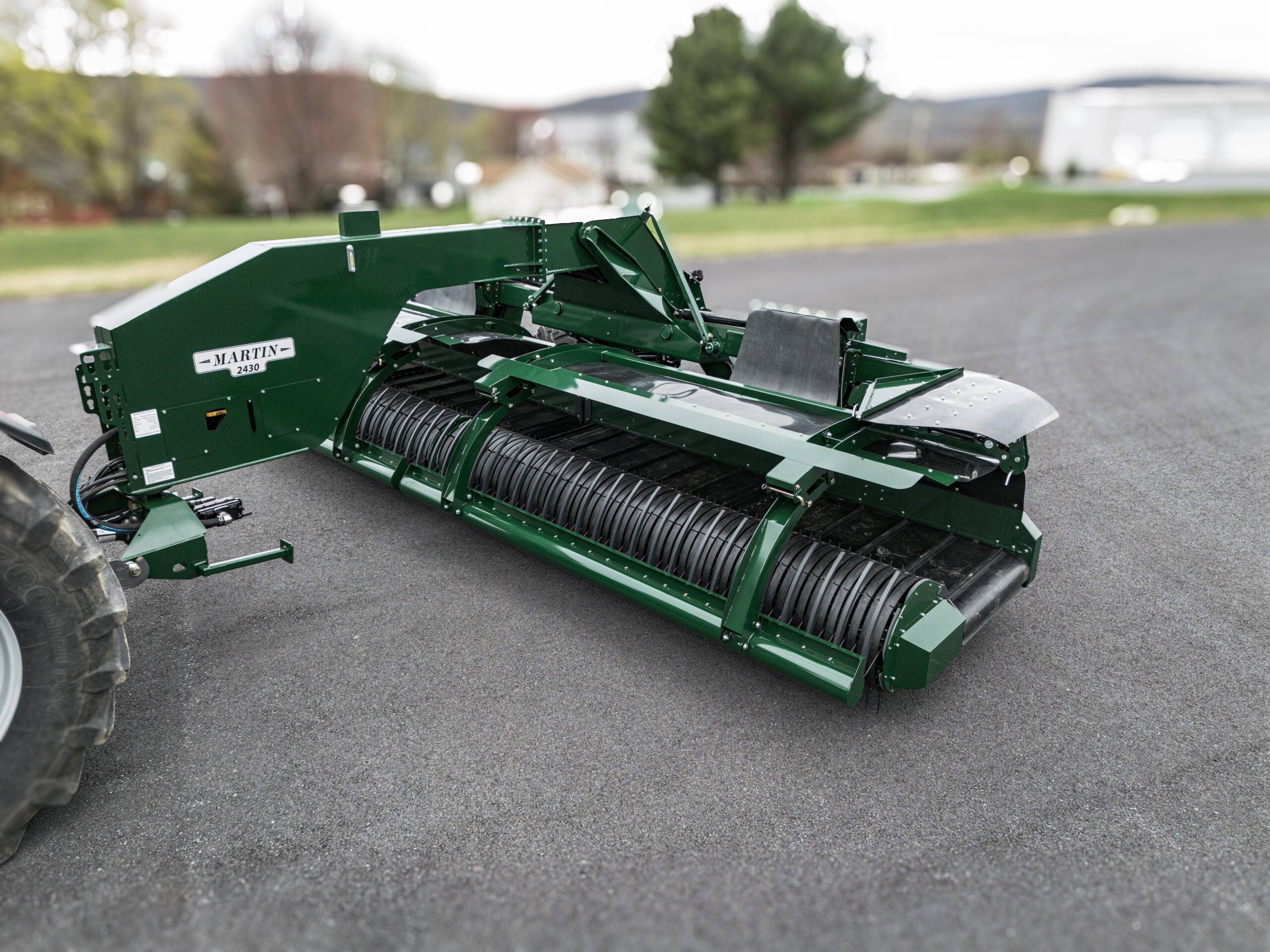

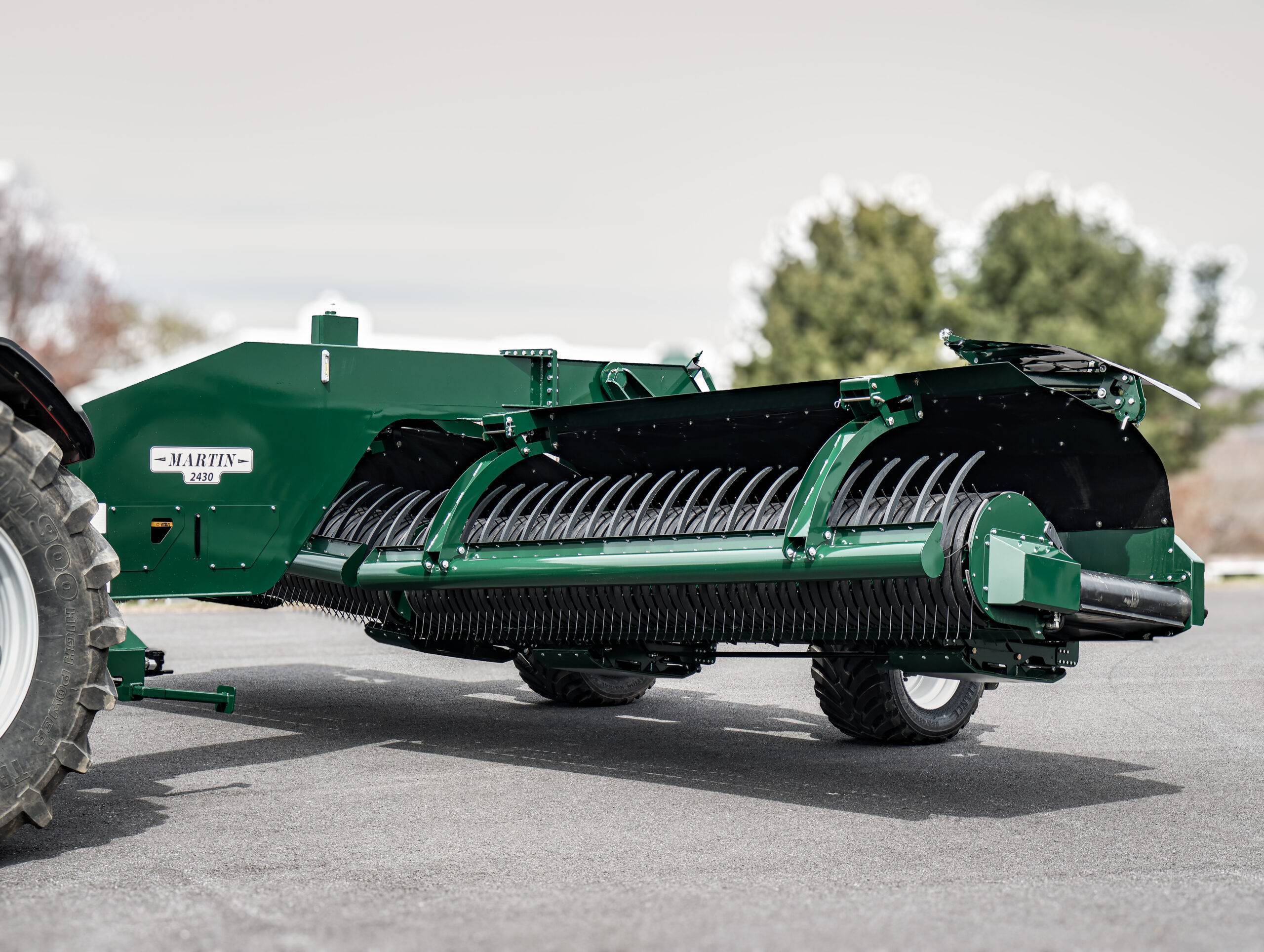

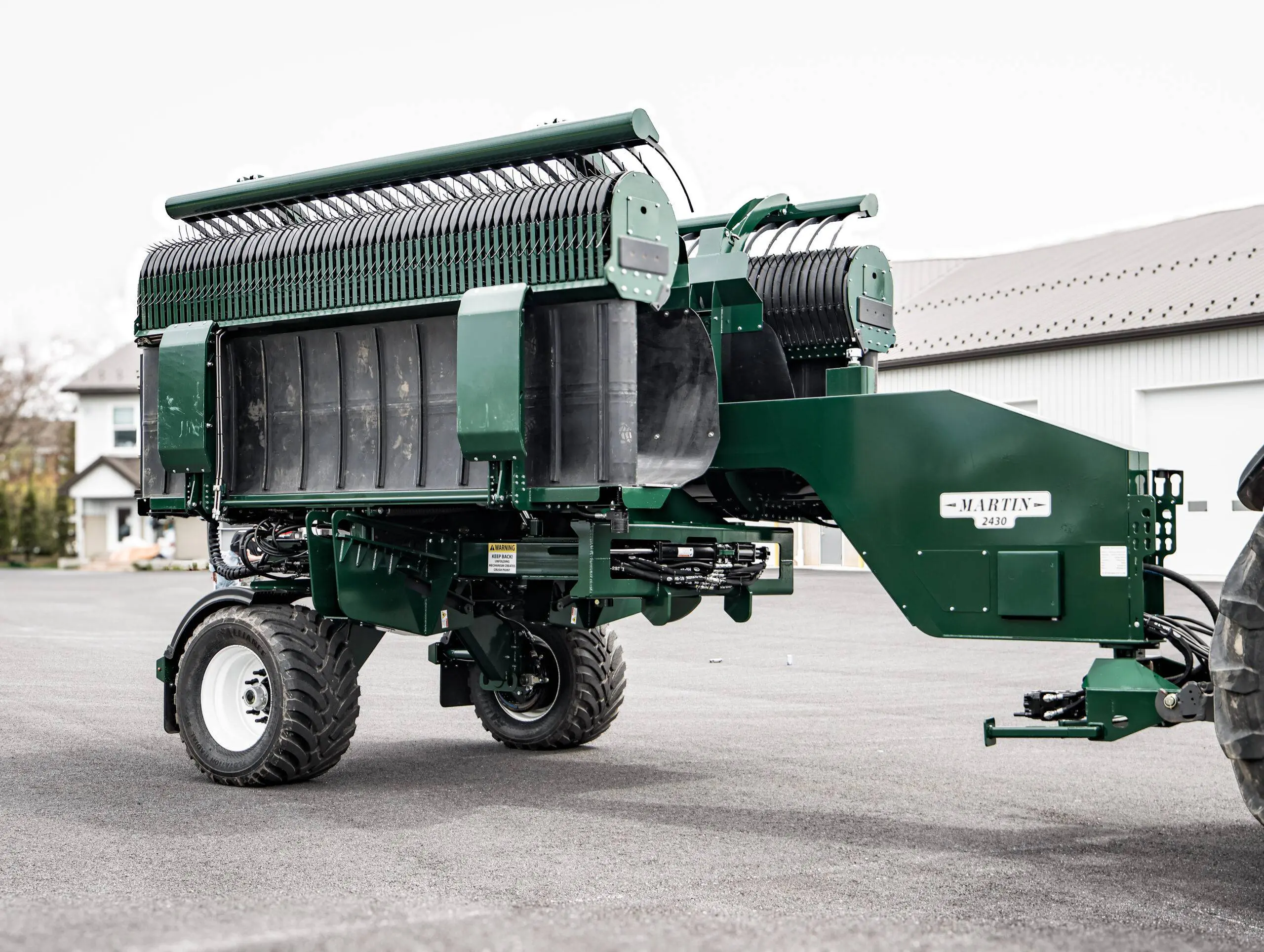

Martin 2430 Merger
Benefits
- Improve Feed Quality
- Accelerate Drying Times
- Reduce Unwanted Materials
- Increase Harvester Efficiency with smooth, consistent windrows
- Merge up to 30 feet into One Windrow

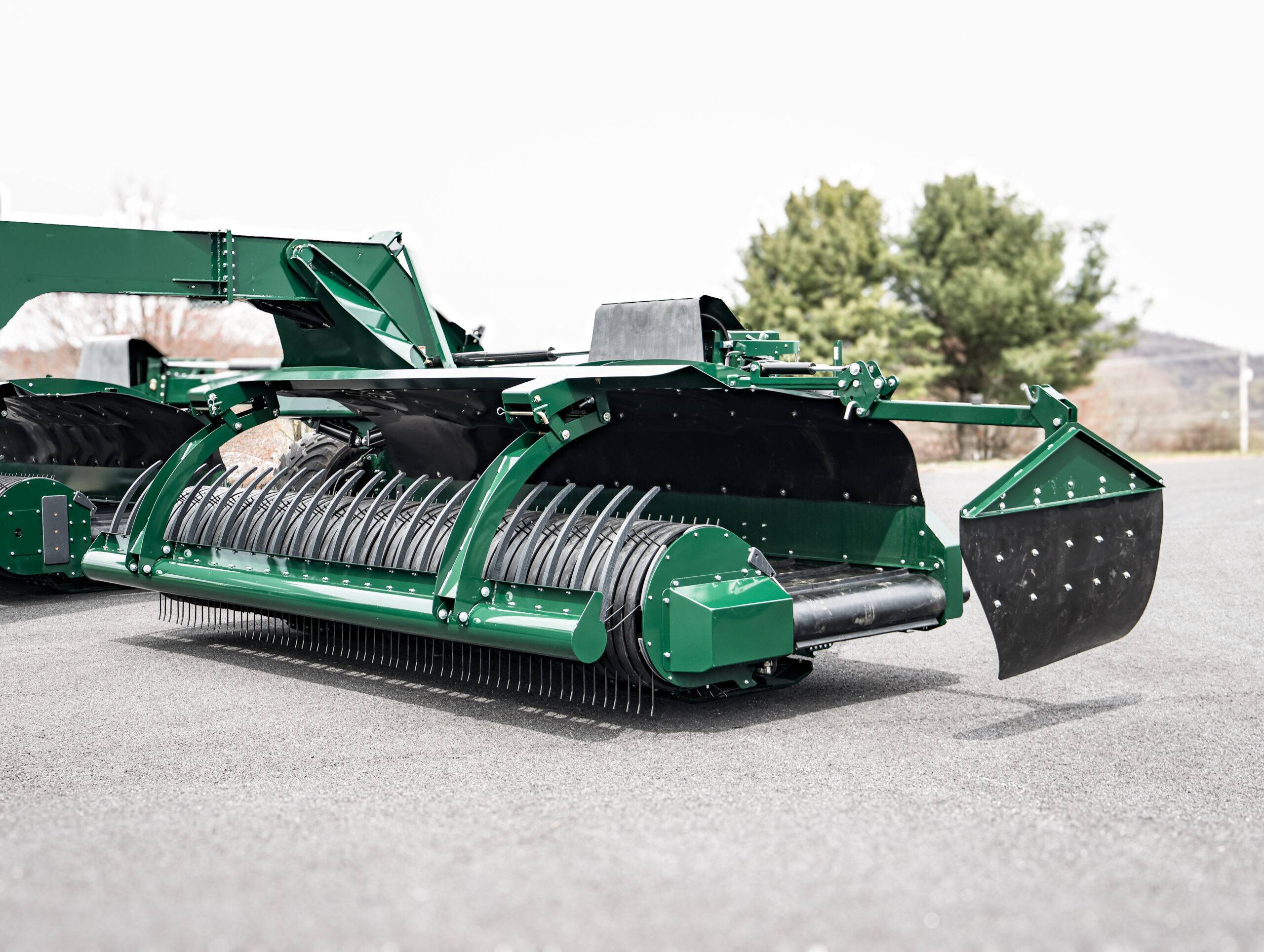

- Low Maintenance Camless Pickup Design
- Industrial Grade 2 Ply Conveyor Belt
- AR500 Hardened Steel Skid Plates for long life, or UHMW Skid Plates for Dry Conditions
Additional Options
SWING-OUT SIDE CURTAINS
Ensures consistent windrow width

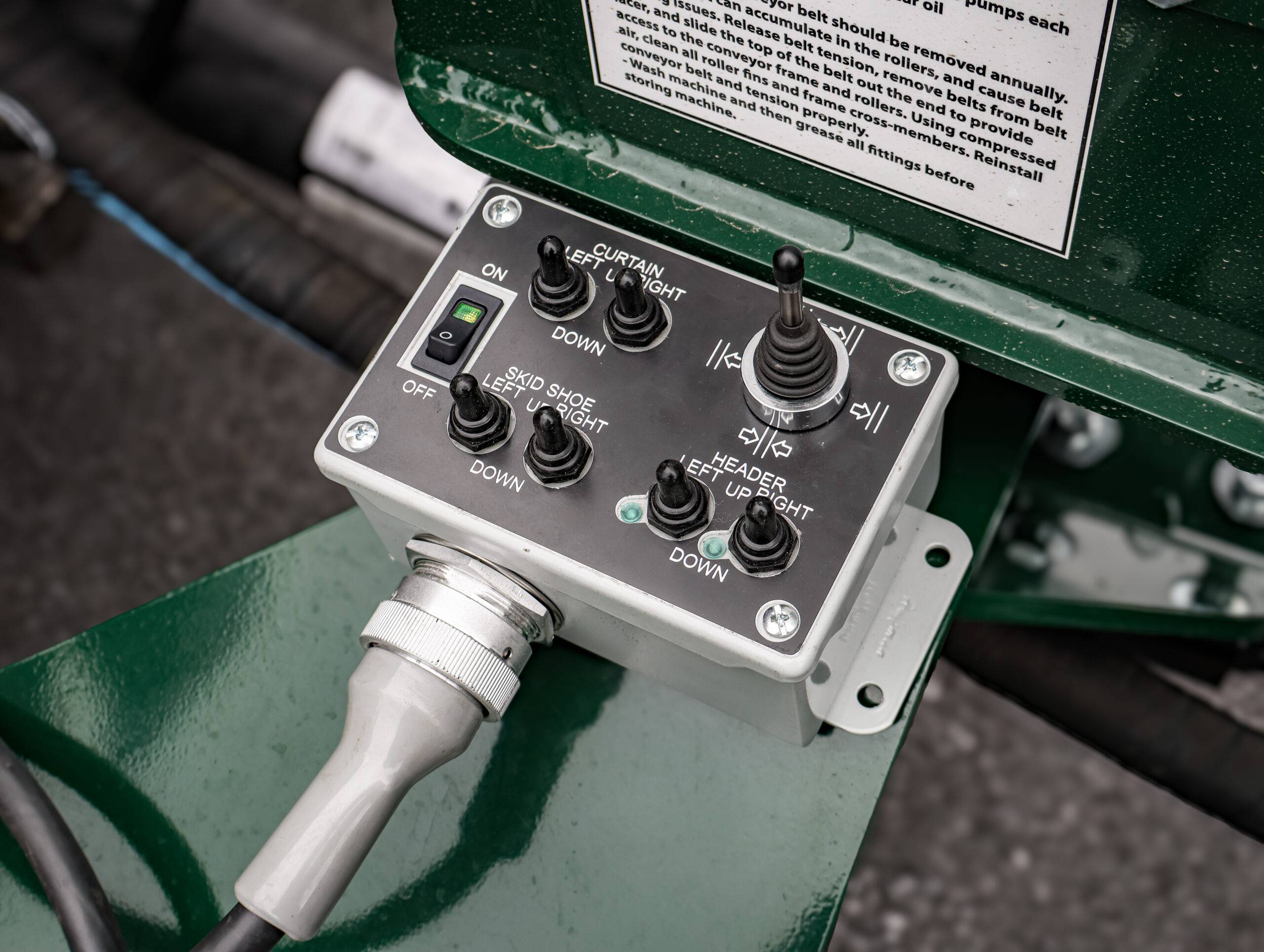

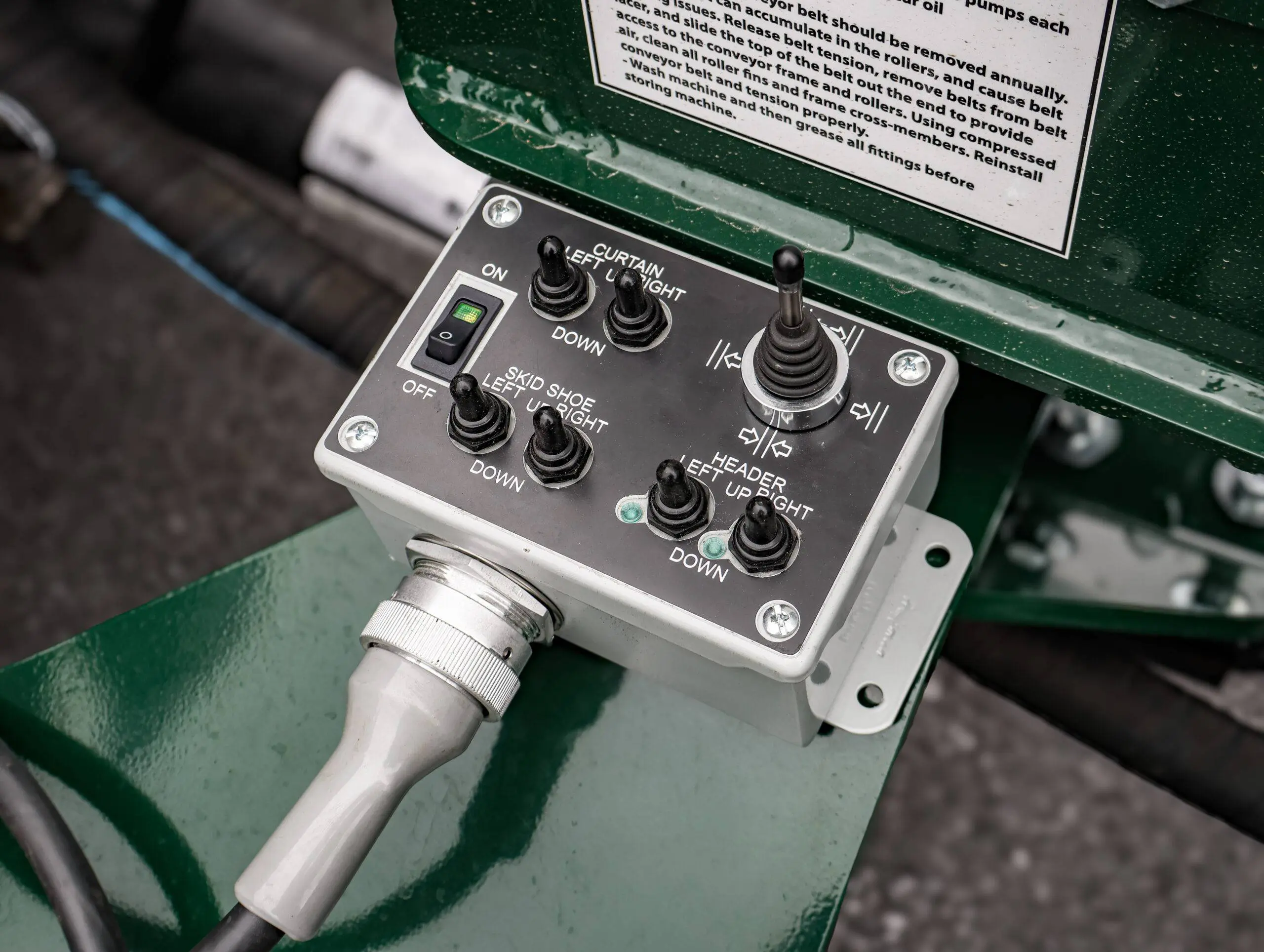

HEADER CONTROL
Allows control of header up/down with tractor remotes
HYDRAULIC DRUM BRAKES
Increases in-field and on-road safety
POWER BEYOND OIL SUPPLY
Frees up tractor remote
2430 Martin Merger Video
Specifications
3240 Martin Merger

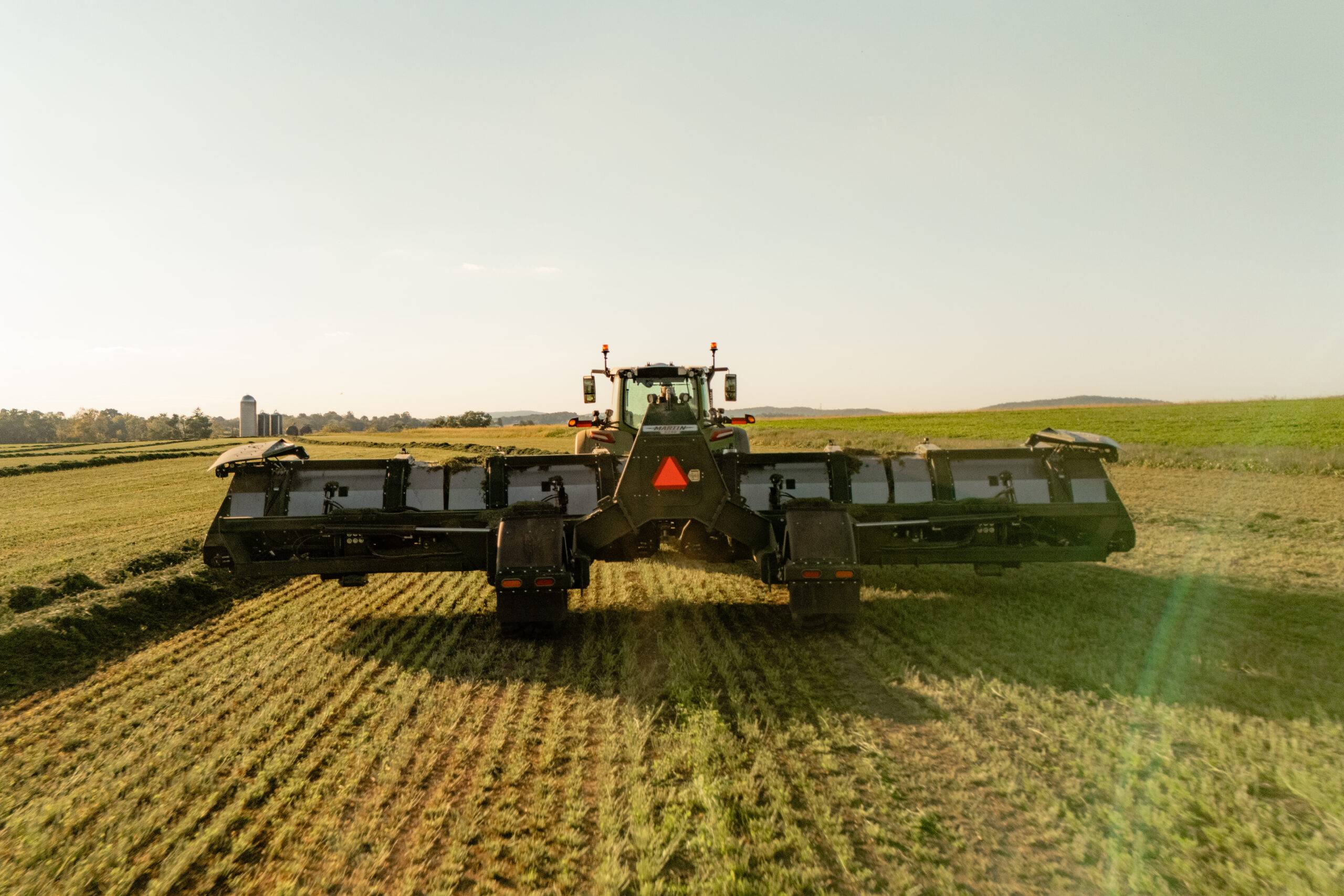

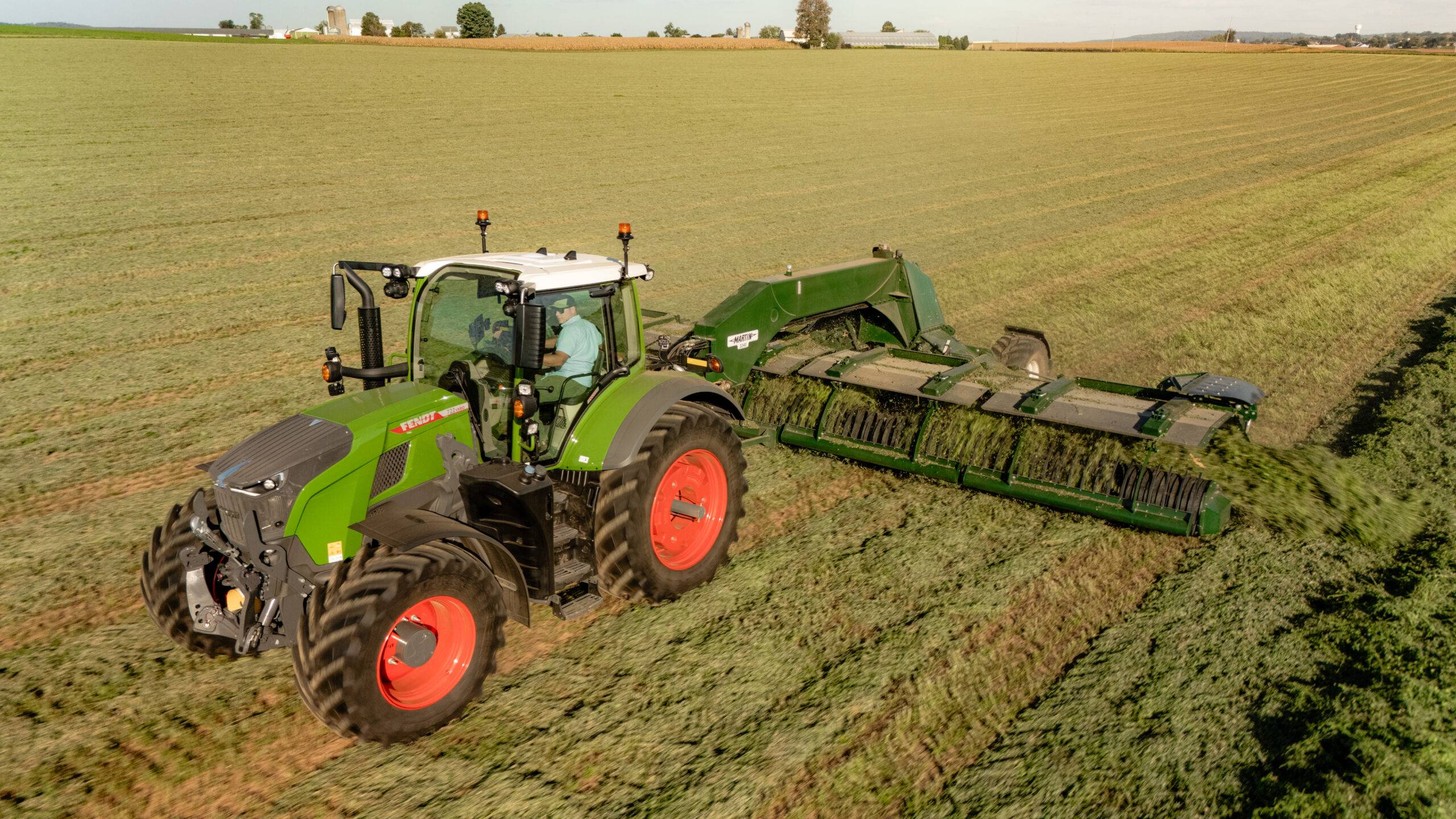

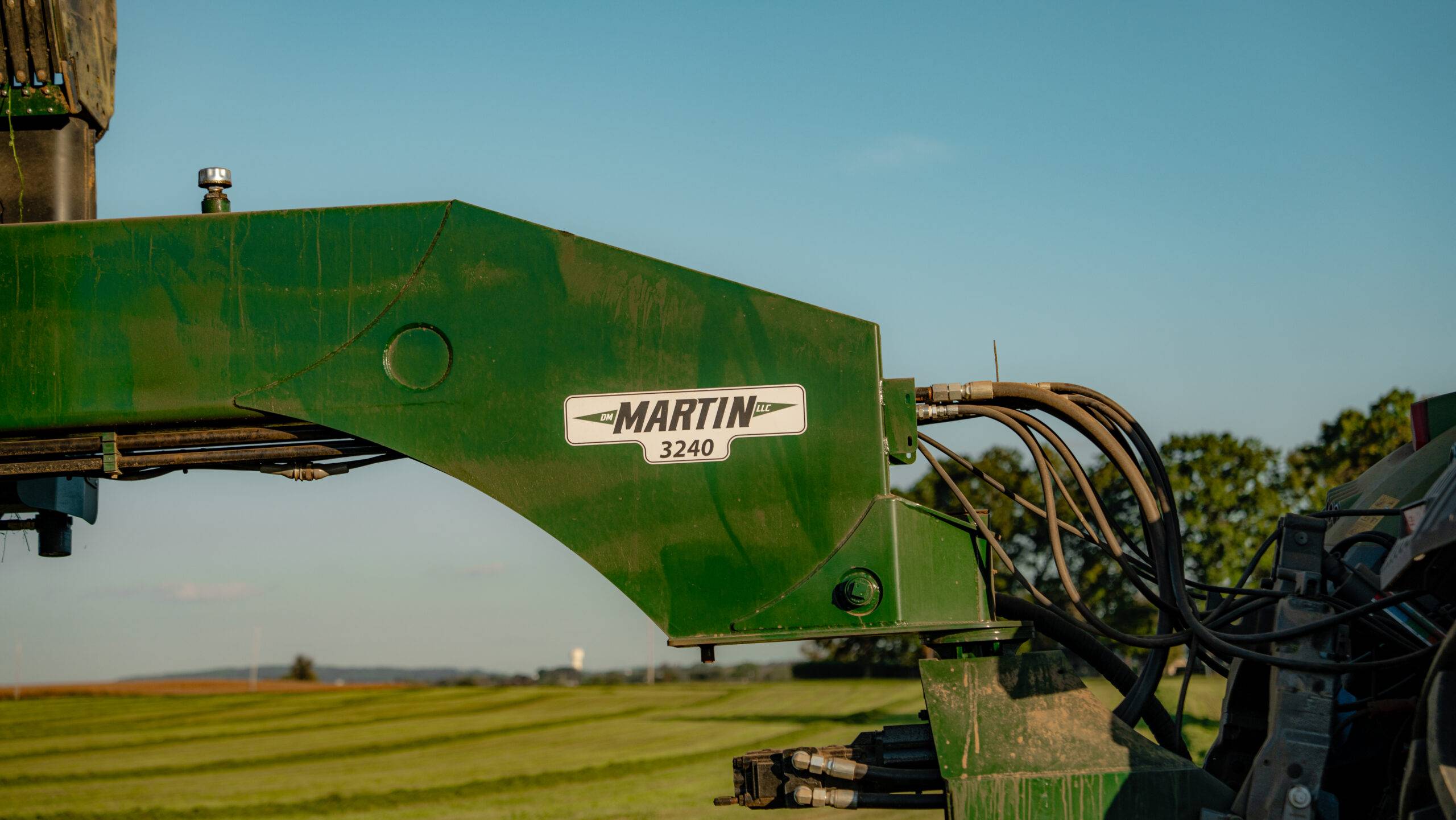

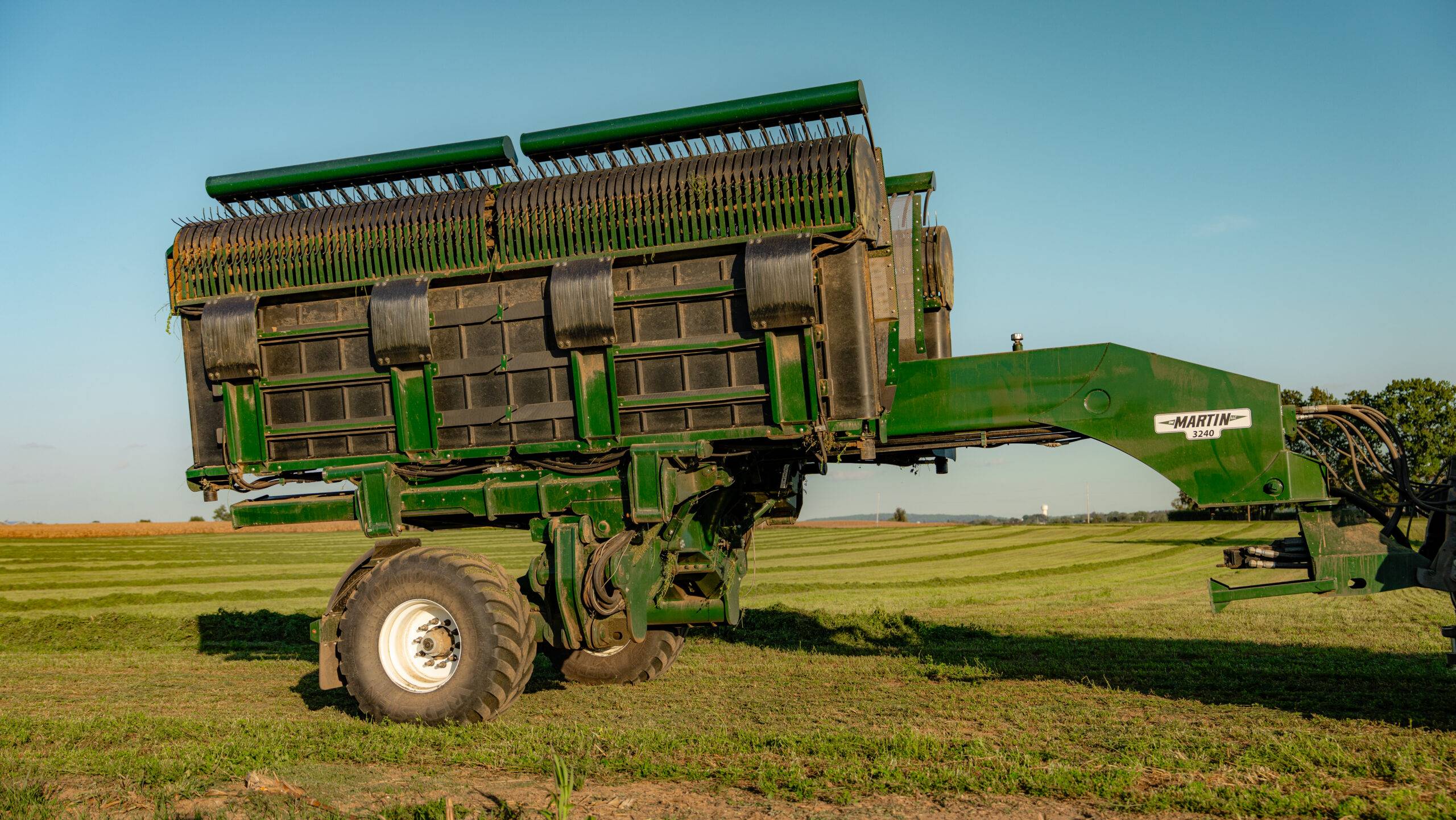

Martin 3240 Merger

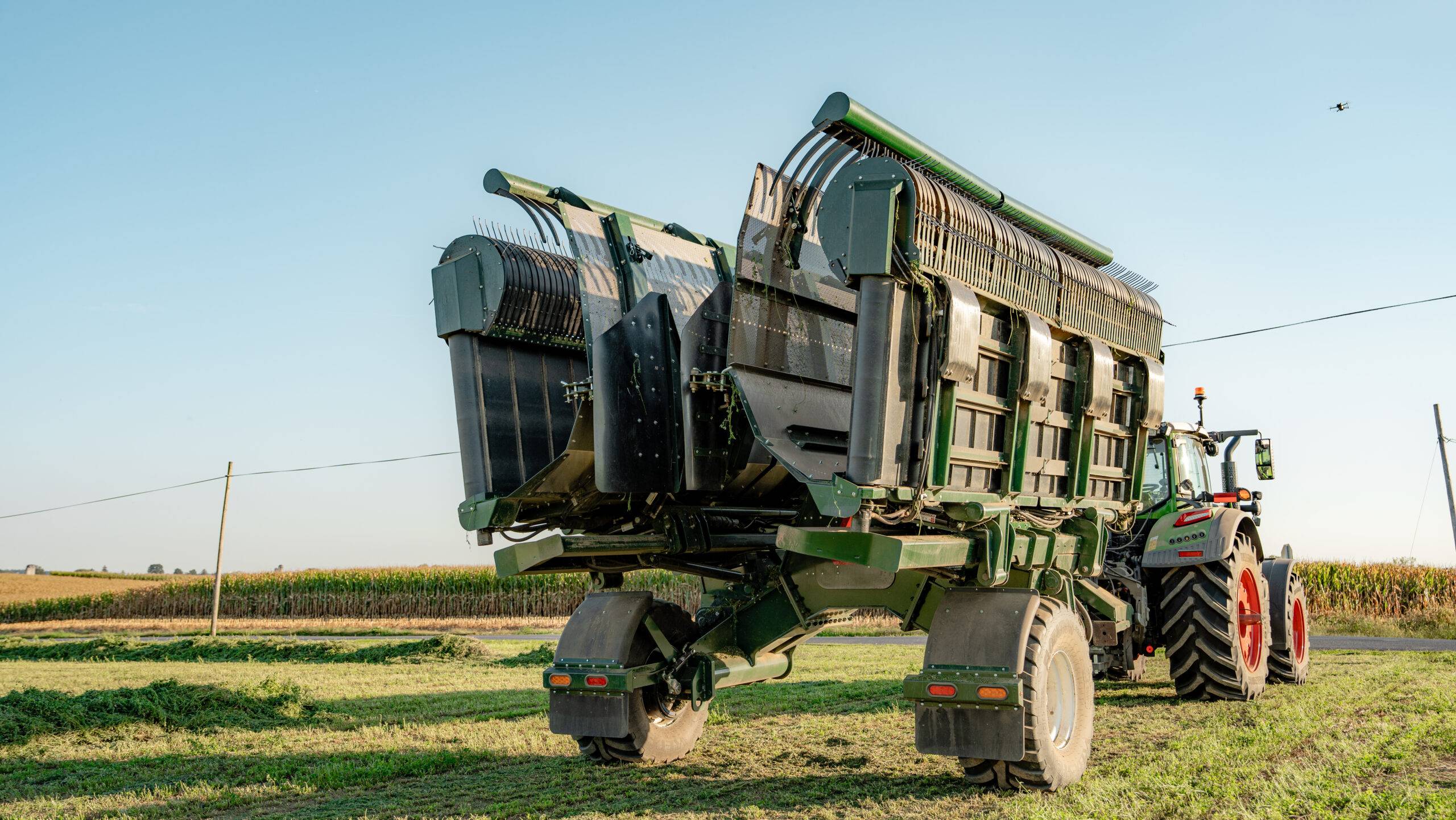

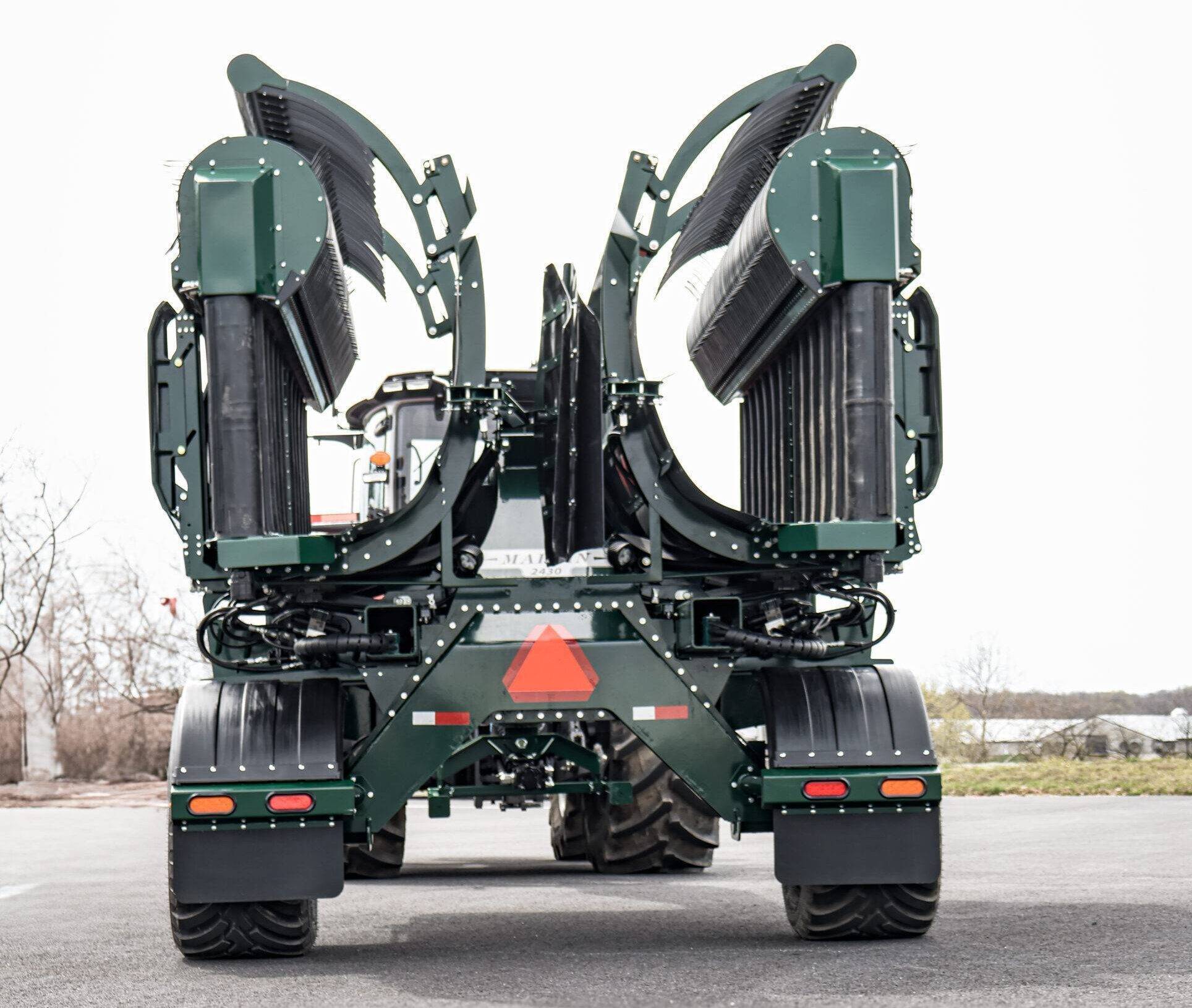

Transport Dimensions
Transport Width
11' 4"
(depending on header tilt)
Transport Height
13'
Transport Length
26'
Weight
Approx. 23,000 lbs
Tire Size
560/60R22.5
Transport Dimensions
- Minimum 20,000 Tractor Weight
- 15 GPM Hydraulic Pump
- Minimum 200 HP
- 2-point hitch, CAT 3
- 1-3/8” – 21 Spline, 1000 RPM PTO
- Requires Power Beyond System
- 2 Hydraulic Remotes
- 7-pin Round Electrical Socket w/ 20-amp Fused Center Pin
- For Hydraulic Drum Brake Option: Brake Valve or an additional remote
Operations

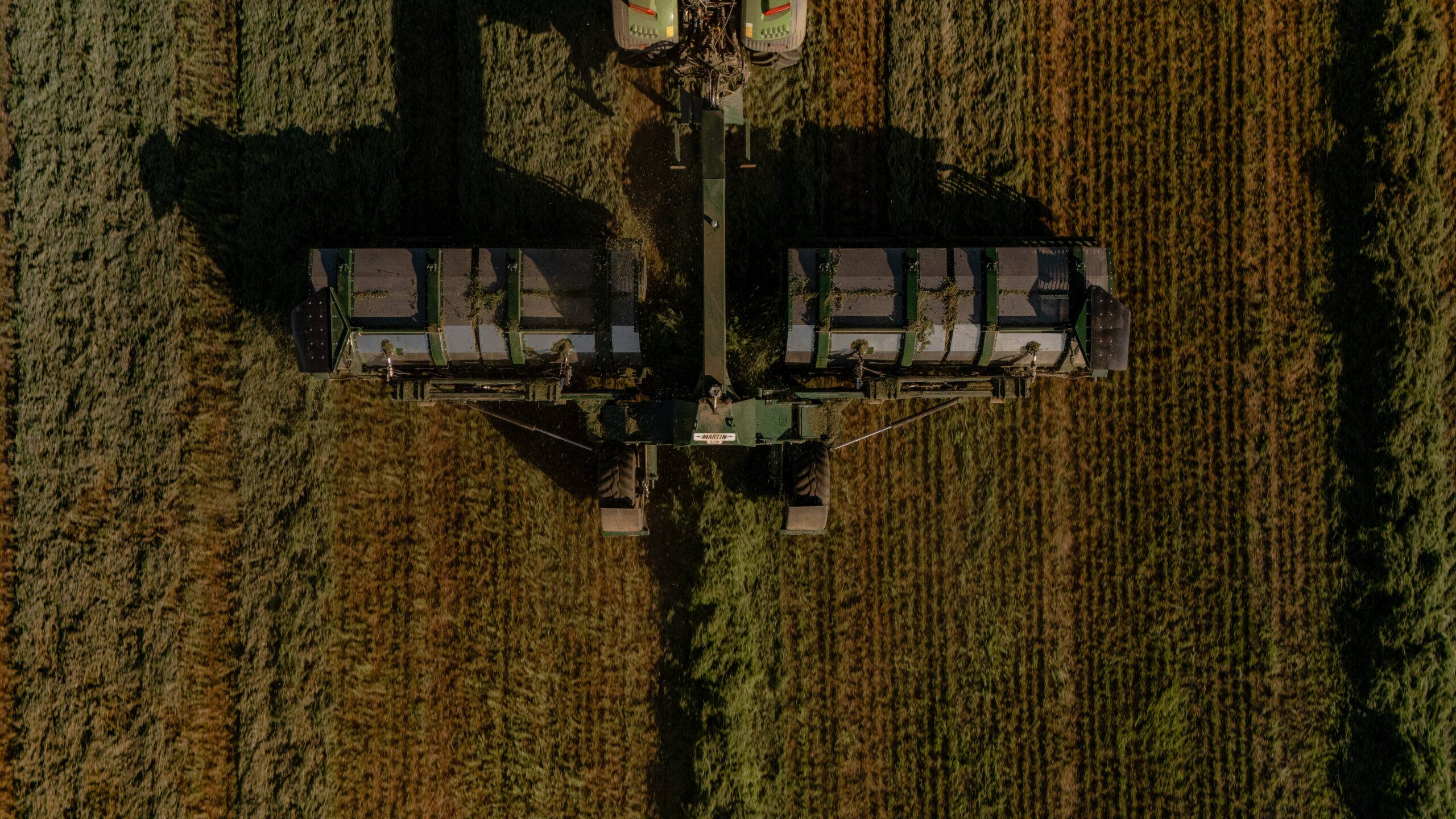

32-39 ft. working width
2 - 16’ ft. sliding flex headers
Center delivery or side delivery
42” Conveyor Belts
Swing-out side curtains
Hydraulic drum brakes

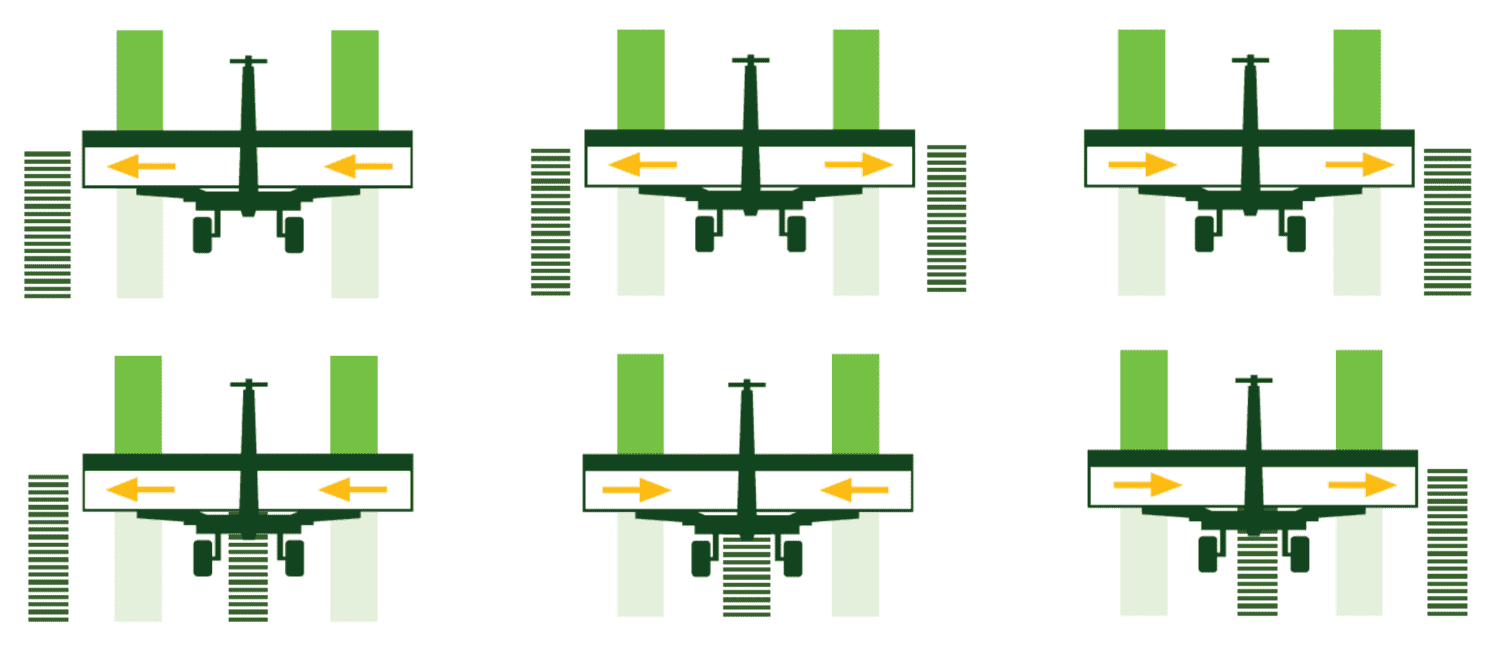

Crop Delivery
